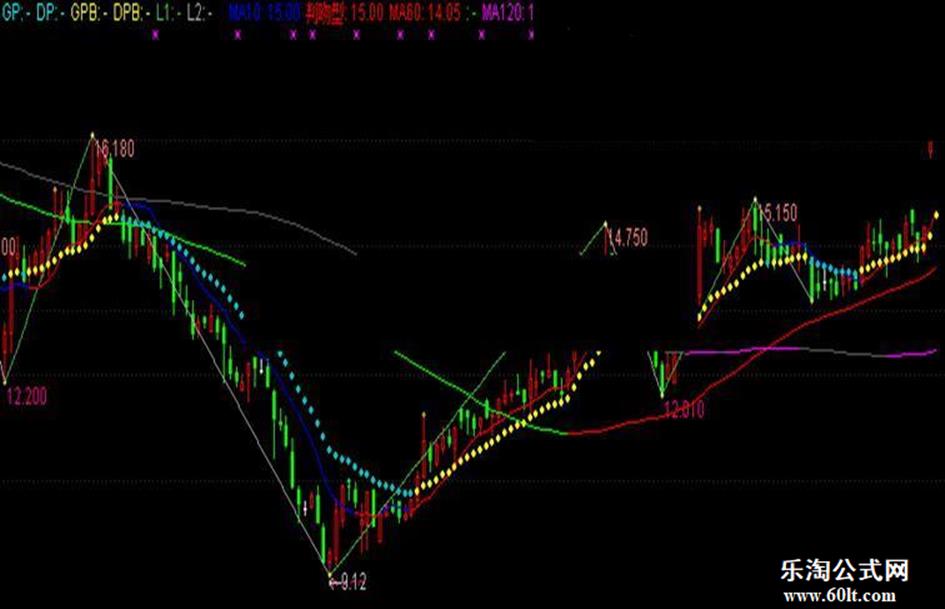

通达信线上操作主图公式

老笔:=0;

G:=MA(C,5);D:=MA(C,10);
HH:=REF(H,5)=HHV(H,11);
LL:=REF(L,5)=LLV(L,11);
FG01:=BACKSET(HH,6)>BACKSET(HH,5) ;
FD01:=BACKSET(LL,6)>BACKSET(LL,5) ;
FG02:=IF(BARSLAST(FG01)=BARSLAST(FD01) AND G>D,FG01,
 IF(BARSLAST(FD01)>BARSLAST(FG01),FG01,0));
FD02:=IF(BARSLAST(FG01)=BARSLAST(FD01) AND D>G,FD01,
 IF(BARSLAST(FG01)>BARSLAST(FD01),FD01,0));
FG0:=FG02 AND H=HHV(H,BARSLAST(FD02));
FD0:=FD02 AND L=LLV(L,BARSLAST(FG02));
GP:IF(FG0,H,DRAWNULL),CIRCLEDOT,COLORCYAN;
DP:IF(FD0,L,DRAWNULL),CIRCLEDOT,COLORCYAN;
GQ:=L>REF(H,1) AND DAY!=REF(DAY,1);
DQ:=H<REF(L,1) AND DAY!=REF(DAY,1);
GQL:=REF(L,BARSLAST(GQ));
DQH:=REF(H,BARSLAST(DQ));
FGH:=REF(H,BARSLAST(FG0));
FGL:=REF(L,BARSLAST(FG0));
FGH1:=REF(H,BARSLAST(FG0)+1);
FGL1:=REF(L,BARSLAST(FG0)+1);
FGH2:=REF(H,BARSLAST(FG0)+2);
FGL2:=REF(L,BARSLAST(FG0)+2);
FDH:=REF(H,BARSLAST(FD0));
FDL:=REF(L,BARSLAST(FD0));
FDH1:=REF(H,BARSLAST(FD0)+1);
FDL1:=REF(L,BARSLAST(FD0)+1);
FDH2:=REF(H,BARSLAST(FD0)+2);
FDL2:=REF(L,BARSLAST(FD0)+2);
FGZH:=IF(FGL<=FGL1,FGH2,FGH1);
FGZL:=IF(FGH1<FGL,FGL,IF(FGL<=FGL1,FGL2,FGL1));
FDZH:=IF(FDL1>FDH,FDH,IF(FDH>=FDH1,FDH2,FDH1));
FDZL:=IF(FDH>=FDH1,FDL2,FDL1);
FG1:=FGH>FDZH AND FG0;
FD1:=FDL<FGZL AND FD0;
FG:=FG1 AND FGH>FDH AND FGL>FDL AND FGL1>FDL;
FD:=FD1 AND FDL<FGL AND FDH<FGH AND FDH1<FGH;
BH0:=(H<=REF(H,1) AND L>=REF(L,1)) OR (H>=REF(H,1) AND L<=REF(L,1));
BHG:=COUNT(BH0,BARSLAST(FD0));
BHD:=COUNT(BH0,BARSLAST(FG0));
BGQ:=COUNT(GQ,BARSLAST(FD0));
BDQ:=COUNT(DQ,BARSLAST(FG0));
BK0:=IF(BHG>0,BHG+2+老笔,IF(BHD,BHD+2+老笔,3));
BK:=IF(BGQ,BK0-BGQ,IF(BDQ,BK0-BDQ,BK0));
G1X:=(FG AND BARSLAST(FD)>BK);
D1X:=(FD AND BARSLAST(FG)>BK);
G1:=(FG0 AND REF(H,BARSLAST(FG0))>=REF(H,BARSLAST(G1X)) AND BARSLAST(D1X)>BARSLAST(G1X))
OR (FG1 AND COUNT(GQ,BARSLAST(FD1))>0 AND REF(H,BARSLAST(FG1))>REF(H,BARSLAST(G1X)));
D1:=(FD0 AND REF(L,BARSLAST(FD0))<=REF(L,BARSLAST(D1X)) AND BARSLAST(G1X)>BARSLAST(D1X))
OR (FD1 AND COUNT(DQ,BARSLAST(FG1))>0 AND REF(L,BARSLAST(FD1))<REF(H,BARSLAST(D1X)));
G1H:=IF(BARSLAST(D1)>BARSLAST(G1),REF(H,BARSLAST(G1)),REF(H,BARSLAST(D1))),;
D1L:=IF(BARSLAST(G1)>BARSLAST(D1),REF(L,BARSLAST(D1)),REF(L,BARSLAST(G1)));
G2:=G1 AND H=HHV(G1H,BARSLAST(D1)+1) AND H>REF(H,1) AND BARSLAST(D1)>BARSLAST(G1);
D2:=D1 AND L=LLV(D1L,BARSLAST(G1)+1) AND L<REF(L,1) AND BARSLAST(G1)>BARSLAST(D1);
G3:=G2 OR (FG0 AND REF(H,BARSLAST(FG0))>REF(H,BARSLAST(G2)) AND BARSLAST(D2)>BARSLAST(G2));
D3:=D2 OR (FD0 AND REF(L,BARSLAST(FD0))<REF(L,BARSLAST(D2)) AND BARSLAST(G2)>BARSLAST(D2));
GPB:IF(G1X,H,DRAWNULL),CIRCLEDOT,COLORYELLOW;
DPB:IF(D1X,L,DRAWNULL),CIRCLEDOT,COLORYELLOW;

{画线}
NN:=G3;UU:=D3;
L1:DRAWLINE(UU,L,NN, H,0),COLORLIGREEN;L2:DRAWLINE(NN,H,UU, L,0),COLORAAAAAA;
{标示端点数值}
DRAWNUMBER(L1 AND L2 AND NN ,H,H),COLORLIRED;DRAWNUMBER(L1 AND L2 AND UU ,L,L),COLORLIMAGENTA;

MA5:=MA(CLOSE,5),COLORFF00FF,LINETHICK1;{判:IF(MA5<REF(MA5,1),MA5,DRAWNULL),COLORWHITE,LINETHICK2;}
MA10:MA(CLOSE,10),COLORBLUE,LINETHICK1;判吻型:IF(MA5>MA10,MA10,DRAWNULL),COLORRED,LINETHICK1;
MA60:MA(C,60),COLORRED;IF(MA60<REF(MA60,1),MA60,DRAWNULL),LINETHICK1,COLORGREEN;
MA120:MA(C,120),COLORMAGENTA,LINETHICK1;IF(MA120<REF(MA120,1),MA120,DRAWNULL),LINETHICK1,COLOR555555;
A1:=DATE <= 13181231;
黄金线18:(EMA(C,18))*A1,POINTDOT,LINETHICK4,COLORYELLOW;
工作线1: IF((EMA(C,18))*A1<REF((EMA(C,18))*A1,1),(EMA(C,18))*A1,DRAWNULL),POINTDOT,LINETHICK4,COLORLIBLUE;
